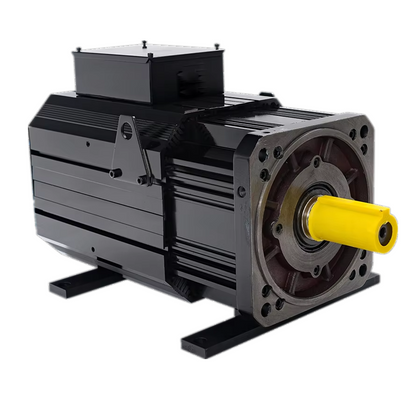

Servos 22KW 380V 1500RPM 140N.m 23bit 3 Phase 22KW AC Servo Motor Kit
Servos 22KW 380V 1500RPM 140N.m 23bit 3 Phase 22KW AC Servo Motor Kit
Regular price
$3,250.00 USD
Regular price
Sale price
$3,250.00 USD
Unit price
per
Couldn't load pickup availability
| Type | SERVO MOTOR |
| Frequency | 50/60Hz |
| Phase | Three-phase |
| Protect Feature | Waterproof |
| Efficiency | IE 2 |
| Product Name | 3Phase AC Servo motor kit |
| Application | General Machinery |
| Rated power(KW) | 22 |
| Rated voltage(V) | 380 |
| Rated speed(rpm) | 1500 |
| Holding torque(N.m) | 140 |
| Bit | 23 bit incremental |
| Weight(Kg) | 75 |
| Single package size: | 100X100X100 cm |
| Single gross weight: | 80.000 kg |
| Flange | 200 |
| Rated power | 22KW |
| Rated Current | 44.5A |
| Rated torque | 140N.m |
| Rated voltage | 380V |
| Rated speed | 1500r/min |
| Insulation grade | Grade F |
| Protection grade | IP65 |
| Ambient temperature | -20°C--+50°C |
the motor adopts Japan Tamagawa encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control appications.

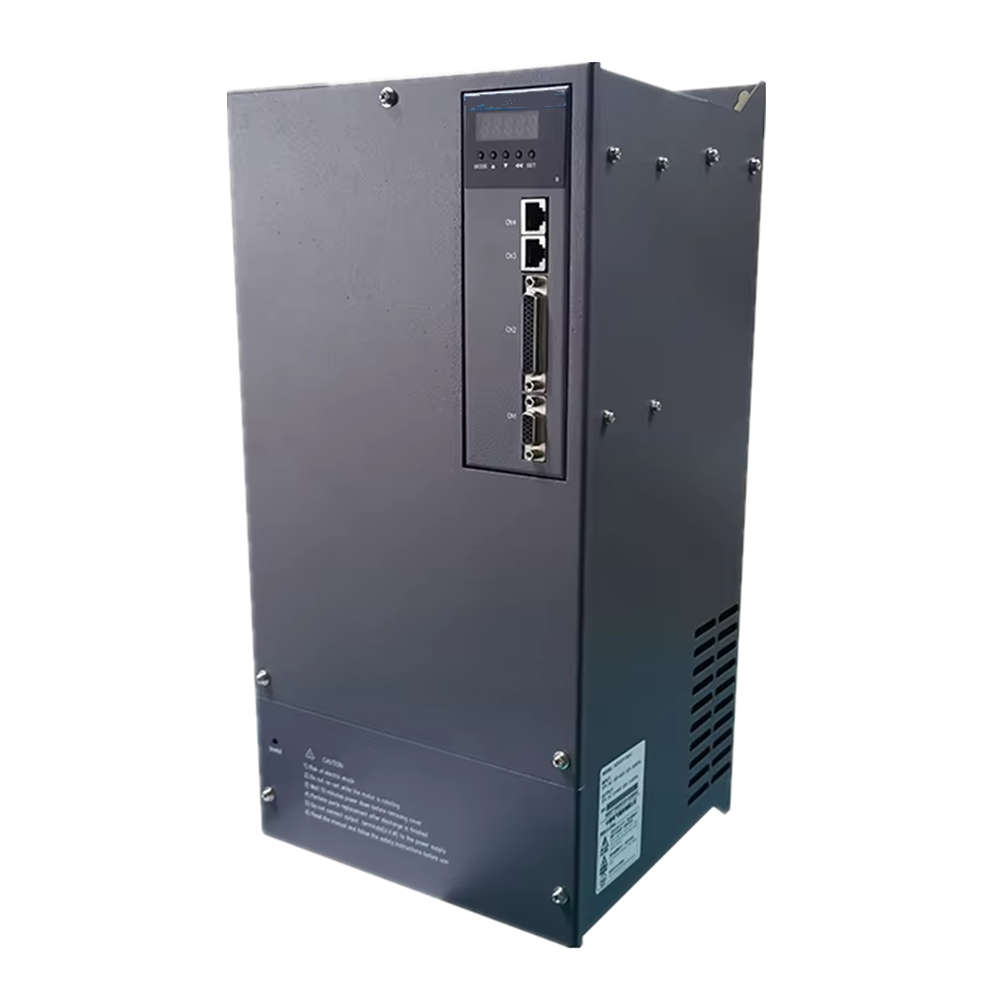

Servo Driver
