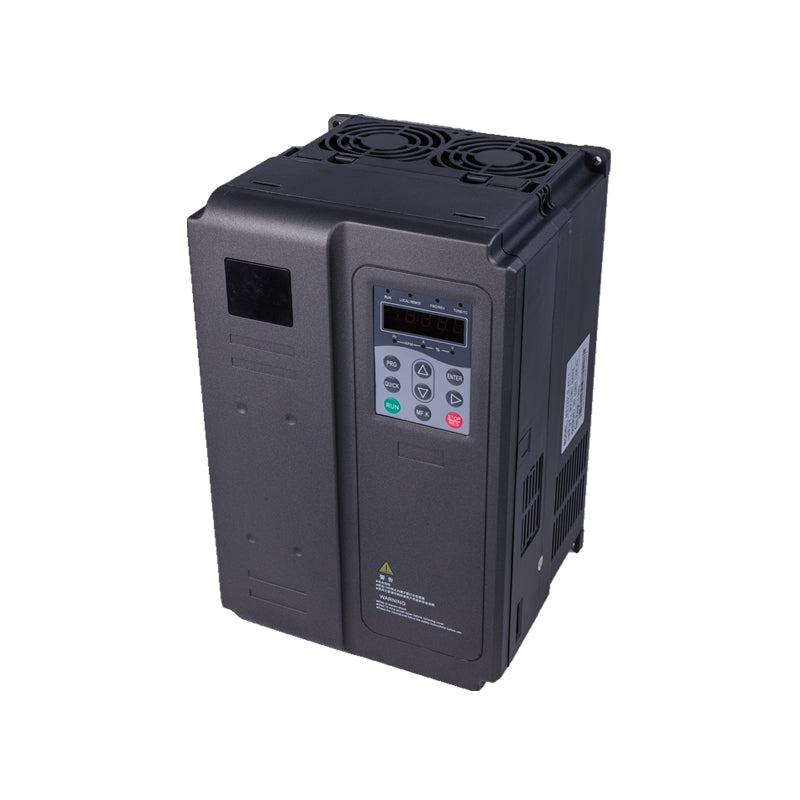

Heavy load VFD Variable Frequency Drive 15kw 380V

Name: Heavy load VFD Variable Frequency Drive 15kw 380V
Brand: FUZ SHIN
SKU: FZX82-015GT4
Price: 581.00 USD
Availability: InStock

$581.00 USD

~~$645.00 USD~~ $581.00 USD

Sale Sold out

Quantity

Carrier frequency	0.5k 〜16k(Hz) ；Carrier frequency can be adjusted automatically according to the load characteristic.
Input frequency resolution	Data setting：0.01 Hz ; Analog setting：0.1 %
Output frequency accuracy	Data setting：±0.01%; Analog setting: ±0.01 %
Control mode	Open loop vector control (SVC)/ Closed loop vector control (VC)/VF control
Startup torque	0.5Hz/180% (SVC)； 0Hz/200% (VC)
Speed control range	1：100 (SVC)	1：1000 (VC)
Speed accuracy	±0.5% (SVC)	±0.05% (VC)
Overload capability	150% rated current for 60 seconds; 180% rated current for 1 second.
Speed up and speed down curve	Straight line or S curve acceleration and deceleration available；4 groups of acceleration and deceleration time and S curve settings; various combinations
repair and maintenance	Can be appointed by any multi-stage speed
Multi-stage running	Realize at least 8 stage speed
Automatic voltage regulation (AVR)	Keep output voltage steady when network voltage changes.
LED display	Display setting frequency, output frequency, output voltage, output current and other parameters
LCD display operating keypad	optional parts, operation in multi languages.
Parameter copy	LCD keypad makes copy of parameters quickly
Protection function	Provide 40 kinds of protection such as short circuit detection, lose phase protection, over current protection, over voltage protection, under voltage protection etc.
Keypad lock and function choosing	Set partial or complete lock to keypad; define keys action to avoid slip operation.
Power-on peripheral equipment safety self-examination	Peripheral equipment detection like grounding, short circuit etc. at power on.
Power failure emergency solution	emergency solution is easy and convenient.
Over speed protection	Elevator over speed protection function built in; various operation choices.
Judgment of speed deviation	Speed deviation testing function built in to find out potential risks in time
Force changing speed	Force changing speed to avoid Elevator crash to ceiling and floor.
Motor temperature detection	detect temperature of motor in time and eliminate potential risks
Startup compensation	Two ways of startup torque compensation; analog or digital.
QUICK key	Customers can define shortcut menu freely
Timing control	Convenient for timing
Running Command	from Keypad, from controlling terminals, from RS485 communication
Frequency Giving	from digital input, from analog voltage, from analog current, from RS485 communication, from multi-stage speed setting.
Input terminal	10 digital input terminals, 1 of which can be used as high-speed pulse input, which is compatible to active PNP or NPN
	3 analog input terminals, 1 of which only can be used as voltage input, another one can be used as voltage or current input.
Output terminal	3 digit output terminals
	2 relay output terminals
	2 analog output terminals, 0/4 〜20mA or 0/2 〜10V can be chosen, can realize set frequency output, output frequency output.
Altitude	Lower than 1000 meters
Surrounding temperature	-10°C〜+40°C (when within 40°C〜50°C, derating is required)
Humidity	Less than 95%RH, no condensation
Vibration	Less than 5.9 m/s2(0.6g)
Storage temperature	-20 °C 〜+ 60 °C

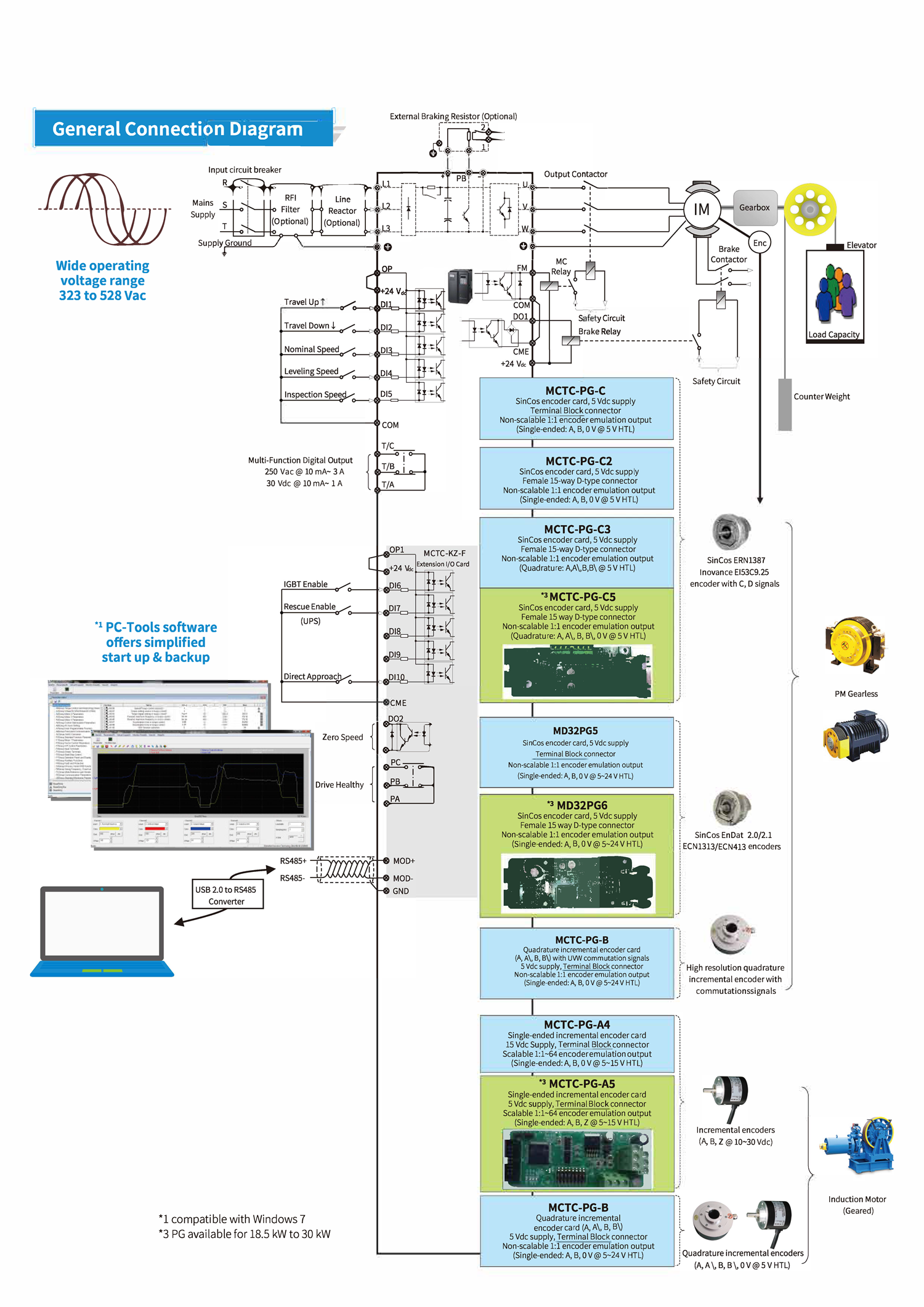

Control Terminals Wiring:

Product Features:

Vector control; Advanced algorithms for smooth curve calculation.
Practical, professional and easy operation Special for Elevator heavy application;
Adapt to permanent-magnet synchronous motor and asynchronous motor, possessing different kinds of rotary encoder interfaces;
Self-tuning function of motor parameters, including static tuning and full tuning;
Quick startup of curve setting; Multi-stage speeds S curve settings and 4-stage acceleration and deceleration time settings to ensure the comfort of the running elevator;
Battery48V power supply can complete self-help when power is off;
Brake contactor control, outputcontactor control, forced deceleration judgment, over speed detection, speed deviation detection, advanced door open detection, contact conglutination detection, motor overheat detection, startuppre-torque compensation and other elevator special functions make elevator control more easier;
The unique one-button design on keypad makes the complicated keyboard operation easier, that it can put anywhere through RJ45 terminal to make elevator commissioning more convenientand simple; parameter copy unit makes batch operations easy;
Built-in DC Reactor and braking unit improve output power factor of the system and reduce the cost of whole system；
Professional lightning protection design, advanced process control.

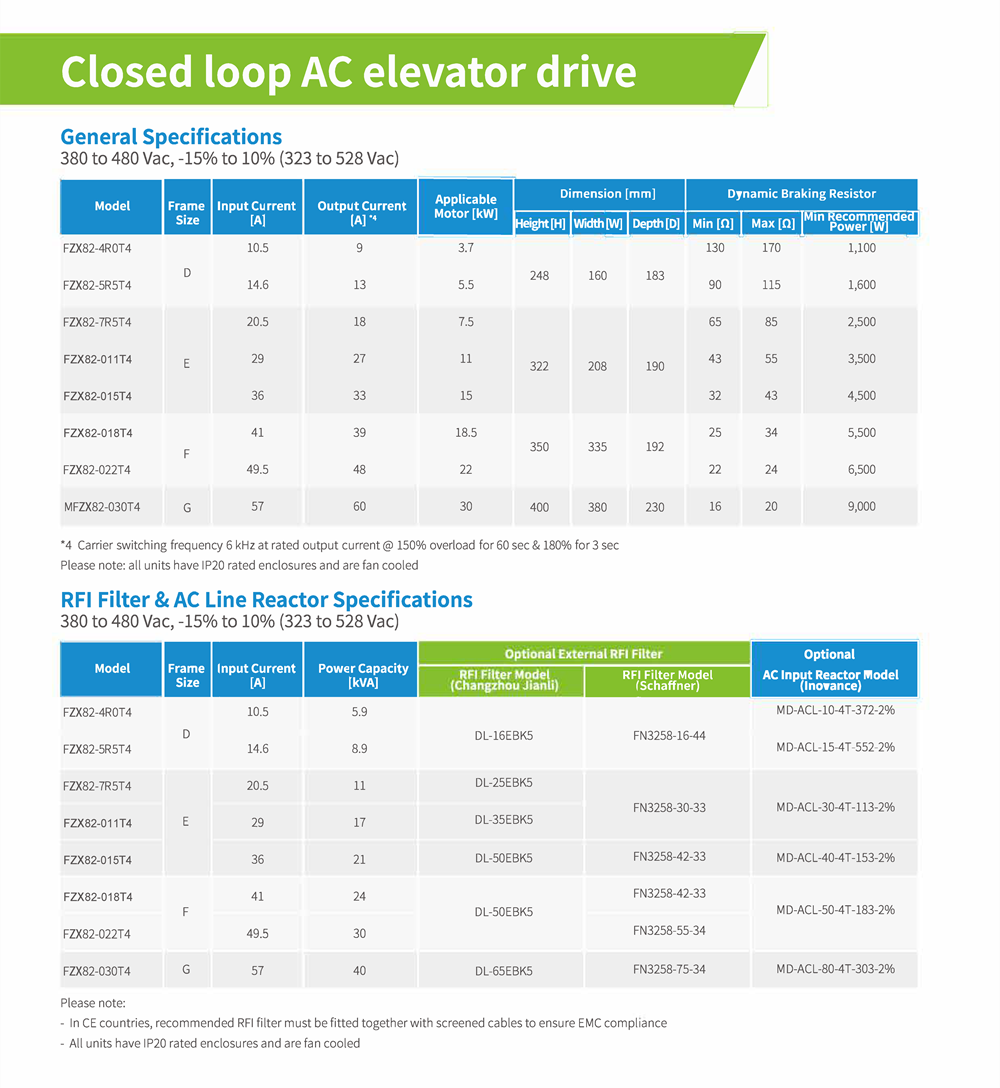

Inverter model	Power volume kVA	Input current A	Output current A	Adapted motor kW
3-phase 380V Range：-15%〜20%
FZX82-5R5T4	8.9	14.6	13.0	5.5
FZX82-7R5T4	11.0	20.5	18.0	7.5
FZX82-011T4	17.0	29.0	27.0	11
FZX82-015T4	21.0	36.0	33.0	15
FZX82-018T4	24.0	41.0	39.0	18.5
FZX82-022T4	30.0	49.5	48.0	22
FZX82-030T4	40.0	62.0	60.0	30
FZX82-037T4	57.0	77.0	75.0	37

Option Spare Parts (Include IP model):

*If need option spare parts, please make remark when placing order.

Name	Model	Function	Remarks

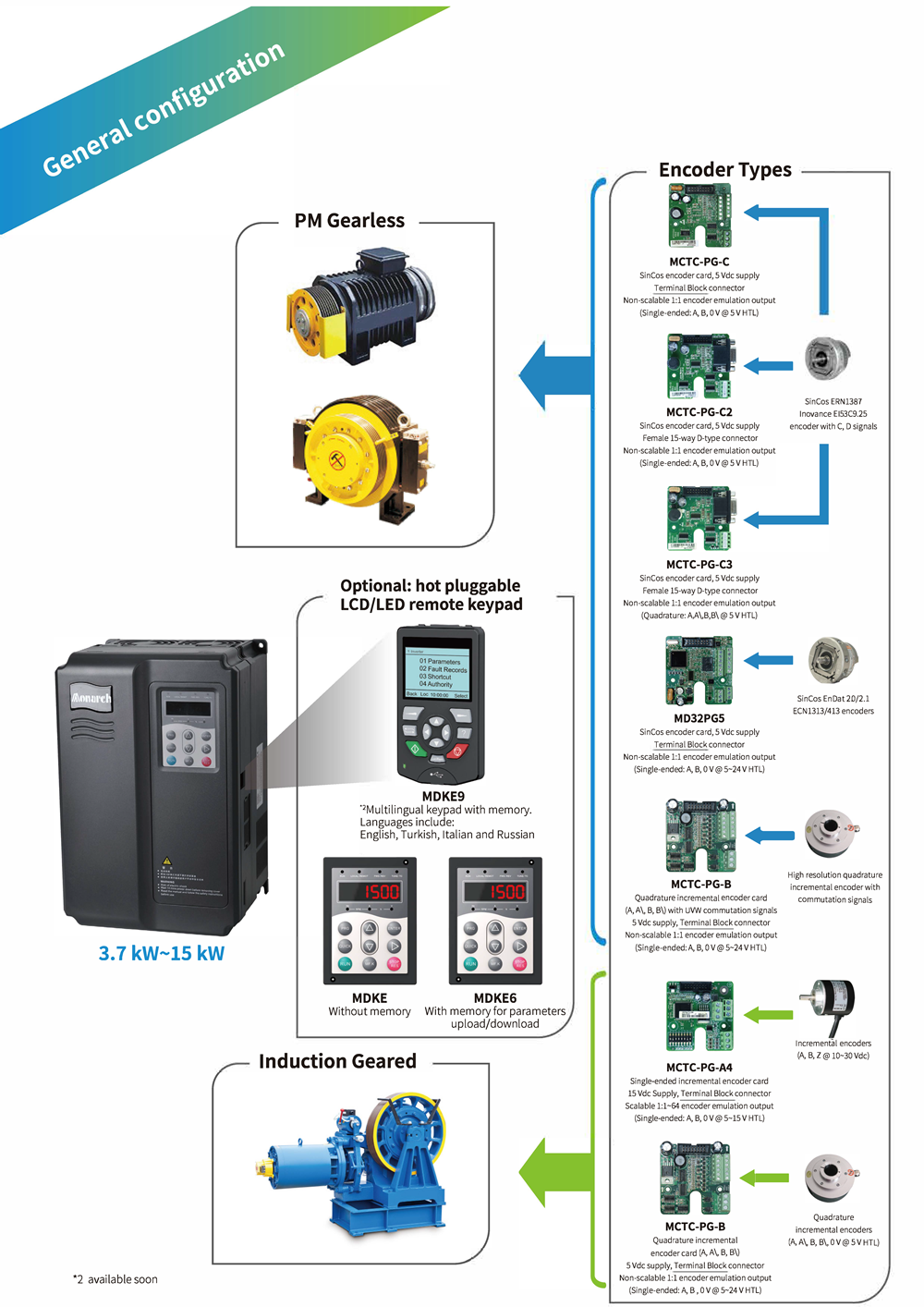

PG card	MCTC-PG-A	Rotary encoder interface card, Frequency Division output card	Provide 5V power. Adapt to push-pull or open-collector output incremental encoder；Frequency Divsion is selectable.
	MCTC-PG-B	Rotary encoder interface card, Frequency Division output card	Provide 5V power. Adapt to Long distance Driving incremental encoder, U V W encoder；Frequency Divsion fix 1.
	MCTC-PG-C	Rotary encoder interface card, Frequency Division output card	Provide 5V power. Adapt to sin, cos encoder
Parameter Copy Unit	ME-CP	Parameter Copy	RJ45 interface applied
External Remote Control Keypad	MDKE	External LED operation Keypad	RJ45 interface applied, for ultra-long-distance use.
Extension cable	MDCAB	Standard 8-core cable	1-meter, 3-meter and others
