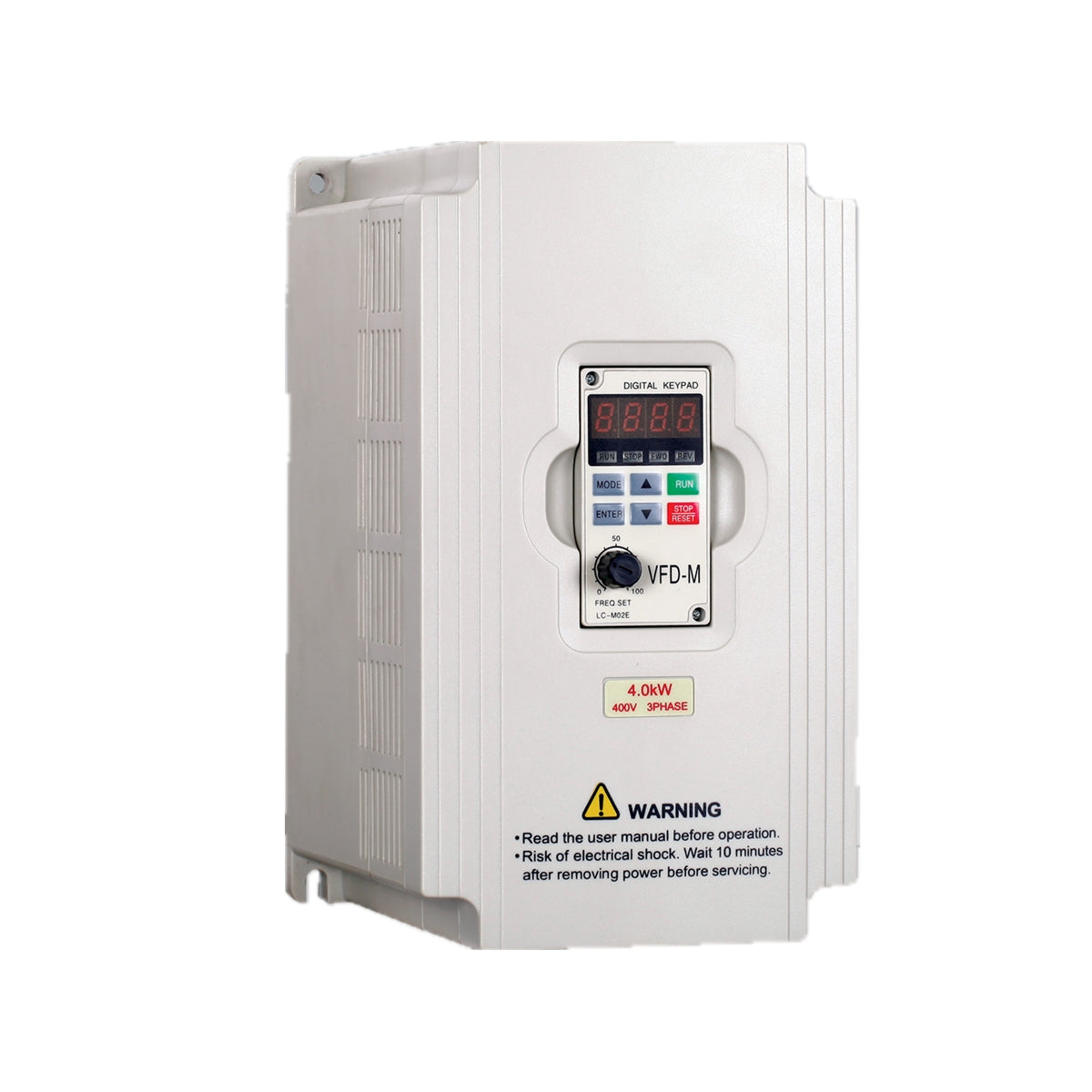

0.75kw 380V 1hp frequency inverter AC motor controller

0.75kw 380V 1hp frequency inverter AC motor controller

$195.00 USD
$216.00 USD $195.00 USD
Sale Sold out


Voltage level 380-480VAC
Max. Applicable Motor Output(kW) 0.75
Max. Applicable Motor Output(hp) 1
Rated Output Capacity (kVA) 2.3
Rated Output Current (A) 3
Maximum Output Voltage (V) 0-380V 3-Phase Variable, proportional to input voltage
Rated Input Current (A) 4.2
Output Frequency (Hz) 0.1-400 Hz
Carrier Frequency (kHz) 1-15KHZ
Rated Voltage, Frequency 3-phase 380-480 VAC, 50/60Hz
Voltage Tolerance ± 10% (342~528 VAC)
Frequency Tolerance ± 5% (47~63 Hz)
Cooling Method Fan Cooled



Main features:

1. 16-bit microprocessor controlled PWM output;

2. Automatic torque boost and slip compensation;

3. Output frequency 0.1~400Hz;

4. 8-steps speed control and 7 steps of process control;

5. Low-noise carrier frequency up to 15kHz;

6. with 2 acceleration/deceleration time and S-curve settings;

7. Process follower 0-10VDC, 4~20mA;

8. Communication interface RS-485 (Baud rate 38400);

9. Energy saving and automatic voltage regulation;

10. Adjustable V/F curve and Simple vector control;

11. Automatic adjustment of acceleration/deceleration time;

12. PID feedback control;

13. Simple position function;

14. Zero Speed Holding function;

15.Sleep and Awake function built-in;

General Specification
Control System SPWM (Sinusoidal Pulse Width Modulation)control (V/F or sensorless vector control)
Freq. Setting Resolution 0.1Hz
Output Frequency Resolution 0.1Hz
Torque Characteristics Including the auto-torque, auto-slip compensation; starting torque can be 150% at 5.0Hz
Overload Endurance 150% of rated current for 1 minute
Skip Frequency Three zones, settings range 0.1-400Hz
Accel/Decel Time 0.1 to 600 seconds (2 independent settings for Accel/Decel Time)
Stall Prevention Level Frequency Setting 20%-200%, Setting of Rated Current
DC Braking Operation frequency 0-60Hz, output 0-100% rated current
Start time 0-5 seconds, stop time 0-25 seconds
Braking Torque Approx. 20% (up to 125% possible with option braking resistor or
braking unit externally mounted)
V/F Pattern Adjustable V/F pattern
Frequency Setting Set by Keypad

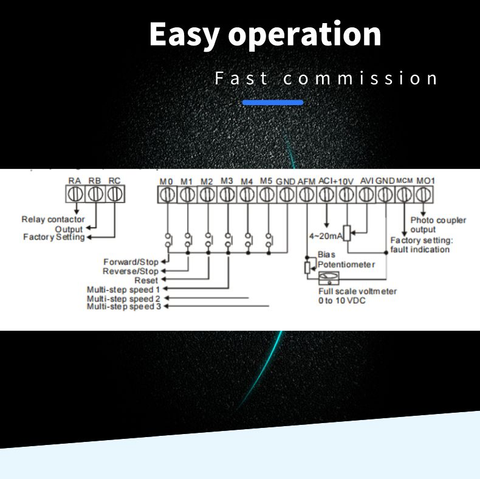

Set by External Signals1: Potentiometer-5KQ/0.5W, 0 to +10VDC; 4 to 20mA, RS-485 interface;
2: Multi-Function Inputs terminals 0 to 5 (7 steps. Jog, up/down)
Operation Setting Set by keypad RUN, STOP
Set by External Signal: 2 wires / 3 wires (Run, Stop, Forward / Rev, ), JOG operation,
RS-485 serial interface (MODBUS)

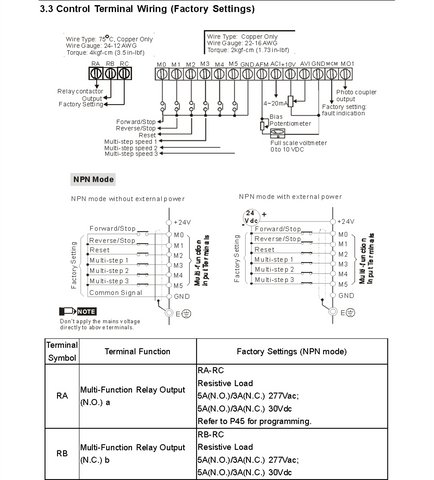

Multi-Function Input Signal Multi-step selection 0 to 7, Jog. accel/decel inhibit, first to forth accel/decel switches, counter,
PLC operation, external Base Block (NC, NO), auxiliary motor control is invalid, ACI/AVI
selections, drive reset. UP/DOWN key settings, sink/source selection
Multi-Function Output Indication AC Drive Operating, Frequency Attained, Non-zero, Base Block, Fault Indication,
Local/Remote indication. PLC Operation indication. Auxiliary Motor Output, Driver is Ready,
Overheat, Alarm, Emergency Stop

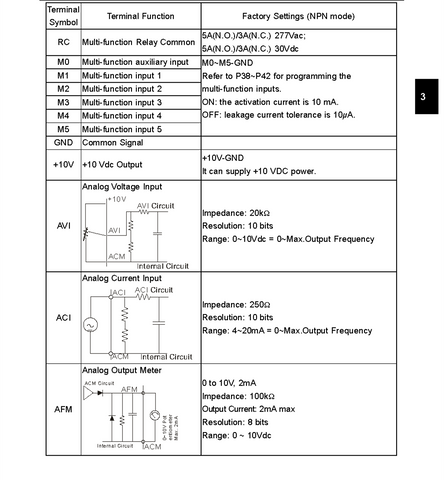

Analog Output Signal Analog frequency/current signal output.
Alarm Output Contact 1Form C contact or open collector output.
Operation Functions AVR. S-Curve. Over-Voltage. Over-Current Stall Prevention, Fault Records. Adjustable Carrier
Frequency, DC Braking, Momentary Power Loss restart, Auto Tuning, Frequency Limits,
Parameter Lock/Reset, Vector Control, Counter. PID Control, PLC,
MODBUS Communication, Reverse Inhibition, abnormal reset,
abnormal re-start, digital frequency output, sleep/revival function,
1 st/2nd frequency source selections
Protective Functions Self-testing, Over Voltage, Over Current, Under Voltage, Overload, Overheating, External
Fault, Electronic thermal, Ground Fault.
Display Keypads 6-key. 4-digit. 7-segment LED. 4 status LEDs, master frequency, output frequency.
Output current, custom units, parameter values for setup, review and faults,
RUN, STOP, RESET, FWD/REV
Protection Level IP20





Product Warranty 2 years.

Technical support for whole life.

View full details
